Carrot Cleaning Grading Solution
Precise grading, efficient cleaning, and enhanced product value.
Carrot Grading Line - Precision Sorting
GELGOOG’s advanced carrot washing and grading system integrates efficient washing, precise grading, and automation. Utilizing high-precision sensors and intelligent algorithms, it ensures non-destructive washing and millisecond-level weight sorting of each carrot, significantly reducing labor costs and material waste. This results in standardized, high-quality end products, helping you establish a core competitive advantage in the market.
Why Choose GELGOOG's Sorter?
Engineered for Excellence, Designed for Your ROI.

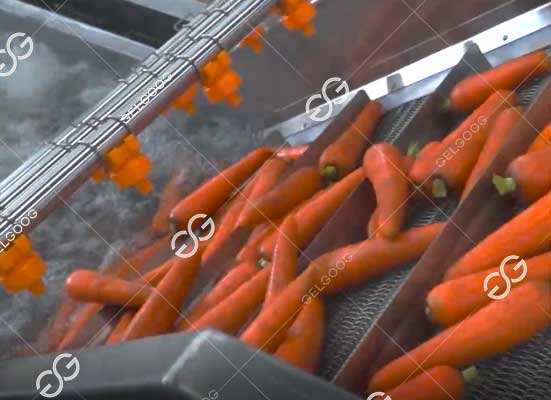

Automated Feeding and Pre-washing
The system utilizes a conveyor belt for uniform feeding and a circulating water spray system to pre-wash the carrots, effectively removing over 90% of surface-attached mud, sand, and large impurities, reducing the workload for the subsequent fine washing stage.
- Automated Feeding: Employing a uniform conveying design, it requires no manual intervention, effectively reducing labor intensity and costs.
- High-Efficiency Pre-washing: Gently and thoroughly removes most surface impurities, protecting the carrot skin from damage.
- Continuous Operation: Seamlessly connects with subsequent stages, ensuring the continuity and efficiency of the entire production process.

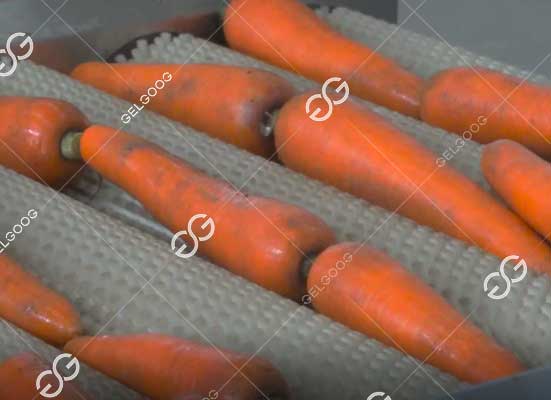

Deep Scrubbing and Fine Washing
This unit consists of nylon brush rollers and food-grade high-pressure nozzles. The brush rollers rotate in opposite directions, working in conjunction with a directional high-pressure water curtain to thoroughly remove stubborn dirt and residual agricultural materials from the grooves and surface of the carrots.
- The specially designed bristles effectively remove dirt while minimizing abrasion to the carrot skin.
- Multi-angle high-pressure water flow provides full coverage rinsing, eliminating blind spots and achieving a cleanliness level far exceeding industry standards.
- A water recycling and filtration system ensures effective cleaning while conserving water and reducing emissions.

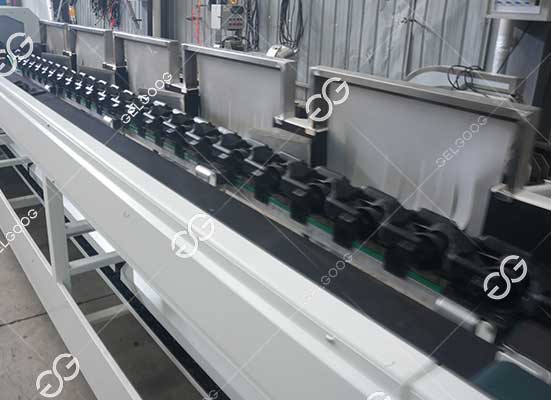

Weight Sensing and Grading
The system employs weight sensors and an intelligent control system. The sensors acquire weight signals in real time, and the PLC compares these signals with preset weight ranges, then distributes the carrots to the corresponding grade channels, achieving rapid and accurate weight identification and grading.
- High-speed weight sensing technology ensures that each carrot is measured and classified quickly and accurately.
- Real-time recording of grading data facilitates production management and quality traceability, supporting intelligent decision-making.
- Extremely high grading accuracy effectively reduces misjudgments, ensuring a high degree of consistency in product specifications across each grade.
Product Collection and Packaging
Graded carrots are then connected to an automatic packaging machine. This enables continuous production from sorting to packaging, avoiding secondary contamination and damage during intermediate stages.
- The design is compatible with various packaging equipment, achieving fully automated assembly line operations from washing and grading to packaging.
- It produces clean, uniformly sized, high-quality products, directly enhancing market image and selling price.
- The gentle conveying method ensures that the carrots maintain their excellent appearance even in the final stage.
