Citrus Fruit Grading Machine Roller Type Citrus Sorter

Our citrus fruit grading machine utilizes advanced roller gap adjustment technology, specifically designed for the automatic size sorting of various citrus fruits such as oranges, lemons, tangerines, and grapefruits. This machine achieves precise, damage-free grading through a physical gap principle, making it a core sorting equipment for the citrus packaging, export, and processing industries.

Citrus Sorting Equipment Working Principle

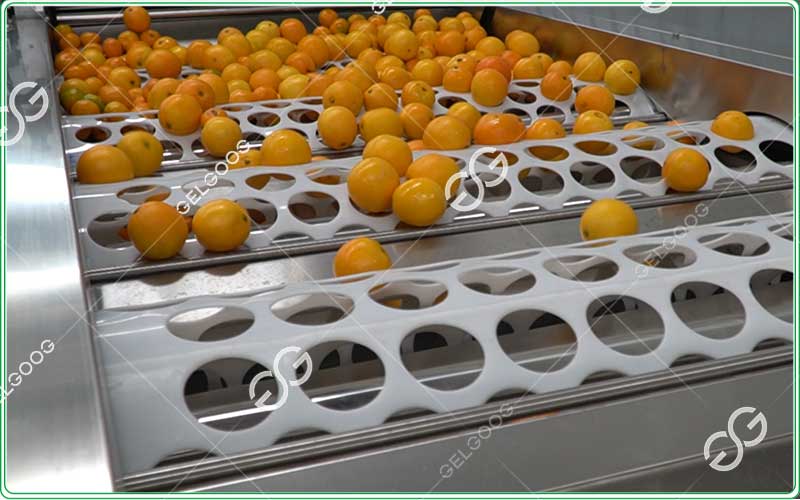

1. Roller Conveying System
Using parallel-arranged food-grade rollers, citrus fruits move smoothly and rotate naturally on the rollers, ensuring that all sides of each fruit come into contact with the grading gap.

2. Adjustable Gap Grading Zone
The grading area is designed with a progressively widening gap; the gap between adjacent rollers gradually increases from the inlet to the outlet. Citrus fruits smaller than the current gap naturally fall into the corresponding collection chute.

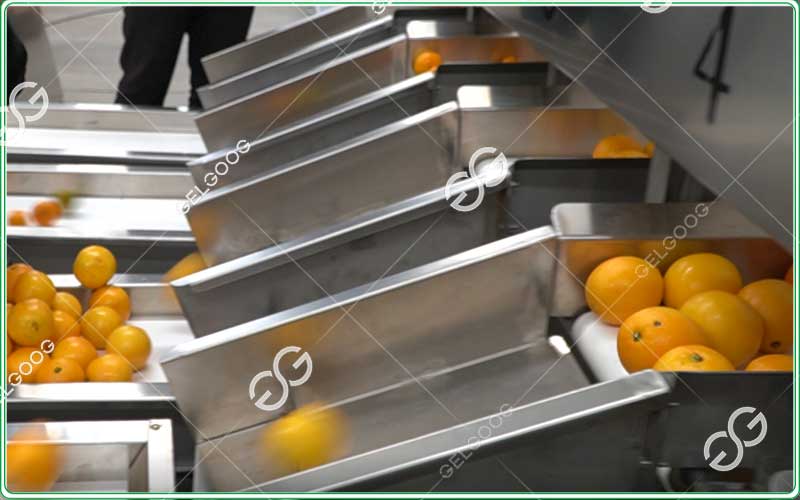

3. Multi-stage Sorting and Collection
The standard configuration allows for simultaneous sorting of 4-7 size grades, with each grade having an independent discharge channel that can be directly connected to a packaging line or transfer bins.

4. Extra-Large Fruit Collection Guarantee
An extra-large fruit collection area is provided at the end to ensure that all sizes of citrus fruits are accurately sorted into their corresponding grades, with a sorting accuracy of ±2mm.

Core Advantages of the Citrus Fruit Grading Machine

• Precise Grading Effect: Through precise mechanical adjustment, the grading consistency reaches over 98%, meeting the strict requirements for citrus specifications in domestic and international markets, especially suitable for export standards.
• Damage-Free Physical Sorting: Pure mechanical gap sorting principle, no electronic impact or compression damage throughout the process, with a peel damage rate of less than 0.5%, perfectly preserving the commercial value of the citrus fruits.
• High Processing Capacity: Single machine processing capacity of 2-8 tons/hour, stable and reliable 24-hour continuous operation, perfectly suited to the concentrated processing needs of the citrus harvest season.
• Strong Adaptability Design: By adjusting the roller parameters, it is compatible with various citrus fruits such as navel oranges, tangerines, lemons, and grapefruits, adapting to fruits with diameters of 60-120mm.

Citrus Fruit Grading Machine FAQ

• Q: Can the machine sort different varieties of citrus fruits?
  A: Absolutely. By adjusting the roller gap and rotation speed, it can accommodate various citrus varieties such as navel oranges, tangerines, lemons, and grapefruits. It can sort even small citrus fruits with a minimum diameter of 50mm.
• Q: How does it handle branches, leaves, and other impurities?
  A: The equipment can be optionally equipped with an automatic impurity removal device at the front end to remove branches, soil clumps, and other impurities before grading, ensuring a clean and efficient sorting process.
• Q: Can it be integrated with existing washing and waxing lines?
  A: Absolutely. The equipment’s inlet and outlet heights are customizable, allowing for seamless integration with washing machines, waxing machines, drying machines, and packaging machines. We provide free production line integration design services.
• Q: What after-sales services do you provide?
  A: We provide: 12-18 months whole machine warranty, lifetime free technical consultation, 72-hour remote response, global spare parts supply network, and optional on-site training services.
