GELGOOG’s orange sorting and grading equipment, integrating defect detection, weight grading, and intelligent rejection. Processing capacity is 3-10 tons/hour, recognition accuracy >99%, and supports customized design.
Three Core Technologies of Orange Sorting and Grading Equipment

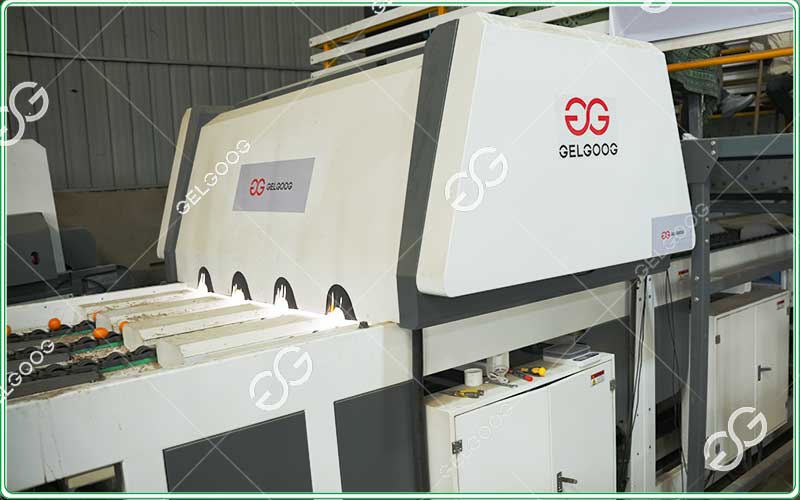

Intelligent Optical Vision Detection System
- Utilizes a multi-angle, high-resolution industrial camera array, equipped with a professional-grade LED lighting system
- Built-in deep learning algorithms accurately identify surface defects of orange fruits: rot, mold, scab, sunburn; mechanical damage, insect damage, deformed fruits; uneven color, insufficient maturity
- Identification accuracy reaches over 99.2%, ensuring that only high-quality fruits proceed to the next stage
High-Speed Pneumatic Rejection System
- Pneumatic nozzle array controlled by precision solenoid valves
- Response time <10 milliseconds, rejection accuracy >98%
- Defective fruits are directly separated, preventing cross-contamination and extending the shelf life of good fruits
Dynamic Weighing and Grading System
- High-precision dynamic weighing module with an accuracy of ±0.5g
- Up to 12 weight grades can be set to meet different market demands
- Flexible lane design protects fruits from secondary damage
Technical Advantages of Orange Sorting and Grading Equipment
- High-efficiency processing capacity: Single-line processing speed can reach 3-10 tons/hour (customizable); 24-hour continuous and stable operation, easily handling peak harvest seasons
- Multi-dimensional grading capabilities: Weight grading: precise sorting from 50g-500g; Appearance grading: comprehensive evaluation of color, defects, size, and shape; Optional near-infrared internal quality detection module (sugar content, acidity, browning)
- Intelligent management system: Central control platform monitors production status in real time; automatically generates grading reports, yield statistics, and defect analysis; supports data export and cloud backup for traceability and analysis
Why Choose GELGOOG Orange Sorting System?
GELGOOG has been deeply involved in the fruit and vegetable sorting field for many years, with over 500 successful orange sorting cases worldwide. We deeply understand the characteristics of different varieties such as navel oranges, mandarins, tangerines, and lemons, and pre-set exclusive identification algorithms to ensure the best sorting results.
- Mature Technology: Their photoelectric sorting technology has undergone years of iteration and is very mature and stable. Core components (such as cameras, sensors, and valves) use international mainstream brands to ensure reliable detection.
- Flexible Configuration: They offer modular configurations ranging from basic weight grading to high-end “vision + weighing + internal quality (near-infrared)” detection. Customers can choose an “entry-level package” based on their current budget and needs, and upgrade in the future, protecting their investment.
- Strong Non-Standard Design Capabilities: They excel at designing and adjusting production lines based on specific customer factory layouts, fruit varieties (such as different orange fruits: navel oranges, mandarins, tangerines, etc.), and special grading requirements (such as whether or not the fruit has stems, and complex defect identification). They provide “tailor-made” solutions, rather than forcing customers to use standard machines.
Action Recommendations:
Before making a final decision, we strongly recommend:
- Sample Testing: Send your orange samples to GELGOOG for actual sorting tests to verify the detection and grading results with data.
- Visit Case Factories: Visit our production lines in person to see them in operation and communicate with existing users about their experience.
- Clearly Define Requirements: Provide a detailed list of your production volume, fruit varieties, grading standards, factory dimensions, and budget so that we can provide the most accurate solution and quotation.
