A cucumber grading production line turns inconsistent, dirt-covered harvest into clean, uniformly sized, market-ready cucumbers at industrial speed. GELGOOG’s fully automated line combines flexible-brush washing, even air drying, roller-based diameter grading and automated packaging into a single continuous flow — improving product cleanliness, commercial value and labor efficiency for farms, cooperatives and export packhouses.
What Is a Cucumber Grading Production Line?
A cucumber grading production line is an integrated system that receives freshly harvested cucumbers and separates them into different commercial grades.
Unlike simple manual sorting, an industrial cucumber grading line continuously transports cucumbers through each processing stage. The grading section can use mechanical sizing, roller gaps, weight detection, optical inspection, or a combination of technologies.
A typical process is:
Raw Cucumbers → Feeding → Washing → Air Drying → Size Grading → Sorting → Packing
The exact configuration depends on cucumber variety, diameter range, required grades, capacity, and final packaging format.
How the Cucumber Grading Production Line Works
From infeed to outfeed, every cucumber is handled gently and consistently through four coordinated stages:

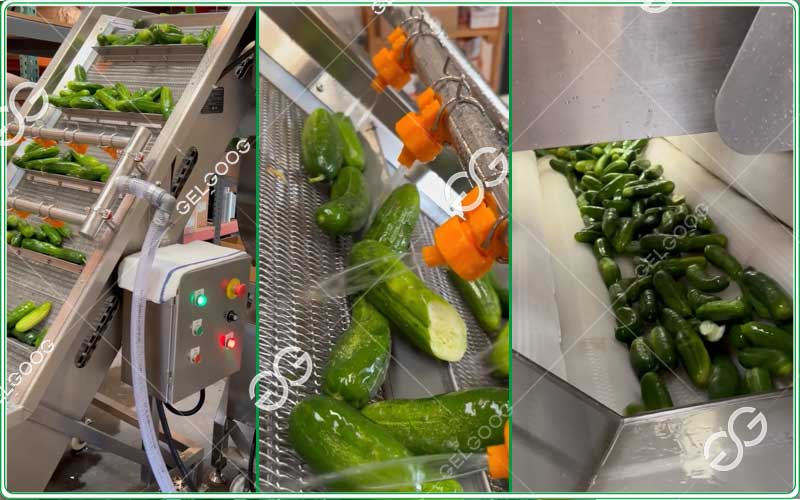

- Feeding & Deep Brush Cleaning — Cucumbers enter on a feeding conveyor and pass through flexible brush rollers. Bristles reach into the surface grooves and the gaps between spines to remove mud and impurities, supported by a spray-rinse system. The peel is never damaged.
- Uniform Air-Curtain Drying — A distributed air curtain removes surface moisture so cucumbers are dry before grading. A dry surface prevents slippage during roller grading and gives a brighter, more marketable green appearance.

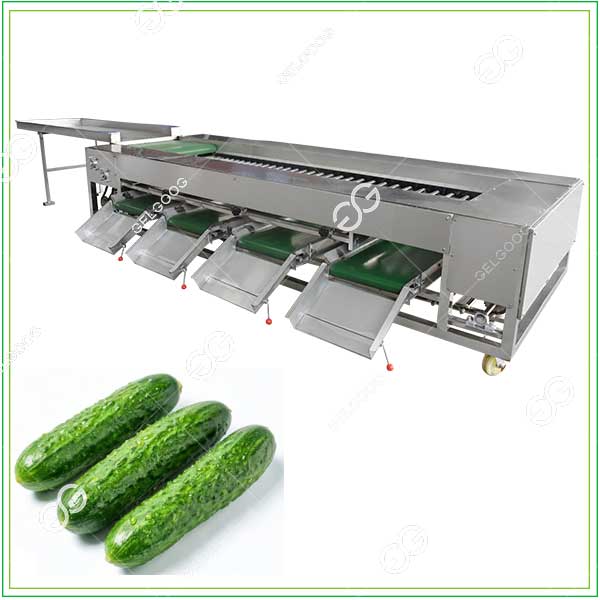

- Precise Roller Diameter Grading — An adjustable roller gap system sorts cucumbers by diameter. The mechanical gap principle keeps each grade’s specification uniform and the special roller design handles bent cucumbers without jamming.
- Automated Packaging — Graded cucumbers are transferred by conveyor straight to packing equipment. The line supports bundling, framing and film packaging for a fully hands-off end-to-end process.
Core Functions of the Cucumber Grading Production Line
- Deep Brush CleaningFlexible bristles penetrate grooves and spine gaps with no blind spots, while a spray system rinses away mud — peel-safe and continuous.
- Uniform DryingAn even air curtain dries the surface quickly, protecting grading accuracy and enhancing appearance.
- Diameter Roller GradingAdjustable gaps sort by size with consistent specs; curvature-adaptive rollers prevent jamming.
- Packaging IntegrationDirect conveyor link to automatic packers; multiple packing modes reduce labor and raise throughput.
Technical Specifications
The configuration below reflects a typical GELGOOG cucumber grading production line and can be tailored to your capacity and grade requirements.
| Parameter | Typical Configuration |
|---|---|
| Grading method | Adjustable roller gap (diameter-based, mechanical) |
| Number of grades | 3 – 6 adjustable grades |
| Capacity | 1 – 5 t/h (model dependent) |
| Cleaning system | Flexible brush rollers + spray rinse |
| Drying system | Evenly distributed air curtain |
| Curvature handling | Yes — special roller design prevents jamming on bent cucumbers |
| Packaging modes | Bundling, framing, film wrapping (integrated) |
| Contact material | Food-grade 304 stainless steel |
| Control | PLC intelligent control, adjustable parameters |
| Automation | Full line from infeed washing to outfeed packaging |
Product Advantages of the Cucumber Grading Line
- Higher commercial value — Clean, dry, uniformly sized cucumbers command better prices and meet strict export standards.
- Lower labor cost — Full automation from washing to packing minimizes manual handling and supports continuous production.
- Non-destructive cleaning — Flexible brushes clean grooves and spines without damaging the peel, reducing loss.
- Stable & reliable — Robust stainless-steel construction adapts to high-volume, long-shift operation with low downtime.
- Easy to operate — User-friendly PLC control lets operators adjust grades and speeds for different cucumber batches.
Application Scenarios
- Cucumber farms and agricultural cooperatives upgrading post-harvest handling.
- Fresh-produce distribution centers and export-oriented packing houses.
- Vegetable processing plants requiring standardized diameter grading.
- Supermarket-supply and branded cucumber programs needing uniform specs.
Cucumber Grading Machine vs. Manual Sorting
| Feature | Manual Sorting | Automatic Grading Line |
|---|---|---|
| Product flow | Intermittent | Continuous |
| Size classification | Operator dependent | Machine controlled |
| Processing efficiency | Limited by labor | Designed for continuous processing |
| Grade consistency | Can vary | More standardized |
| Integration | Limited | Washing, grading and packing can be connected |
| Production expansion | Requires more labor | Can be designed for higher throughput |
For small-scale operations, manual grading may still be practical. For commercial processors handling larger volumes, an automated industrial cucumber grading line can provide a more scalable processing solution.
Why Choose GELGOOG
- Global on-site installation — Professional team sets up the line to match your workflow.
- 24/7 remote assistance — Lifelong technical support for fast troubleshooting and minimal downtime.
- Expert consultation — We analyze your processing needs and optimize the grading solution.
- Complete line integration — Seamlessly pairs with GELGOOG washers, dryers and packers for end-to-end post-harvest processing.
FAQ About Cucumber Grading
What does a cucumber grading production line do?
It automatically washes, dries, grades cucumbers by diameter and packs them — replacing manual sorting with a consistent, high-speed process.
How are cucumbers graded?
By an adjustable roller-gap system that sorts cucumbers into 3–6 diameter grades. The mechanical gap principle keeps each grade’s size uniform.
Can it handle bent or curved cucumbers?
Yes. The special roller design adapts to curvature and prevents jamming, so misshapen cucumbers move through smoothly.
Does cleaning damage the cucumber peel?
No. Flexible brush rollers clean grooves and spine gaps without harming the peel, preserving appearance and shelf life.
Can the line connect to my existing packaging machine?
Yes. Graded cucumbers transfer via conveyor to automatic packers and support bundling, framing and film wrapping.
Is the line customizable?
Yes. Capacity, number of grades and packing mode are configurable to your plant layout and market requirements.
Get a Custom Cucumber Grading Production Line
Tell us your capacity and grade targets — GELGOOG designs, installs and supports your line worldwide.
