Gelgoog’s pear washing and grading machine uses high-precision electronic sensing technology to automatically weigh each pear and accurately distribute them to different outlets according to preset weight ranges. This ensures uniform packaging, reduces waste, and helps you sell high-quality pears at a higher price.
How the Pear Washing and Grading Machine Works
The line has three steps. Washing. Drying. Weight grading.
Step 1: Washing

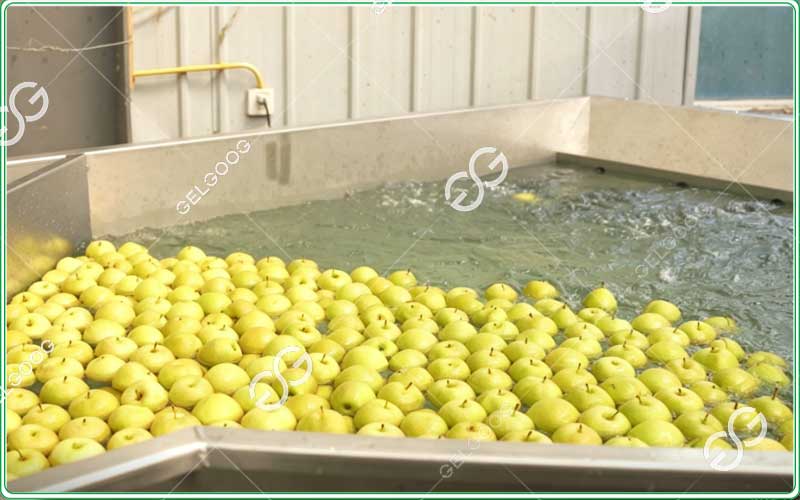

Pears go into a soaking tank. Then rotating brushes clean them. Water sprays remove dirt. The brushes are soft. They do not bruise the fruit.
Step 2: Drying
Air knives blow off remaining drops. Dry fruit is important. Wet fruit gives wrong weight readings.

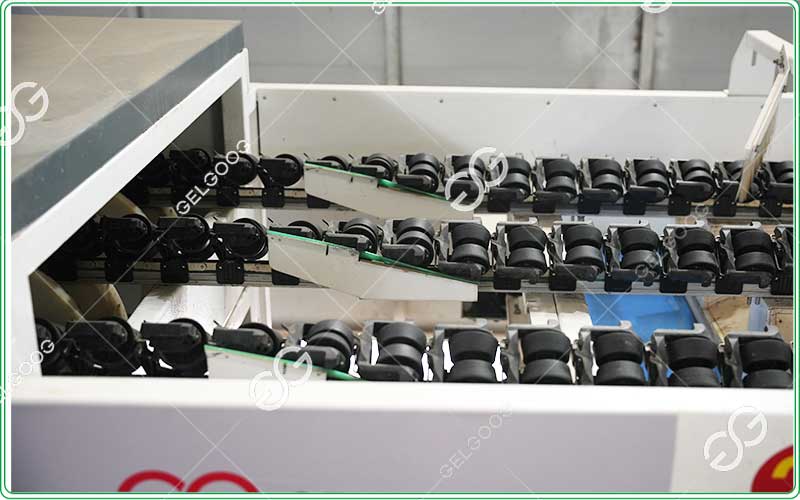

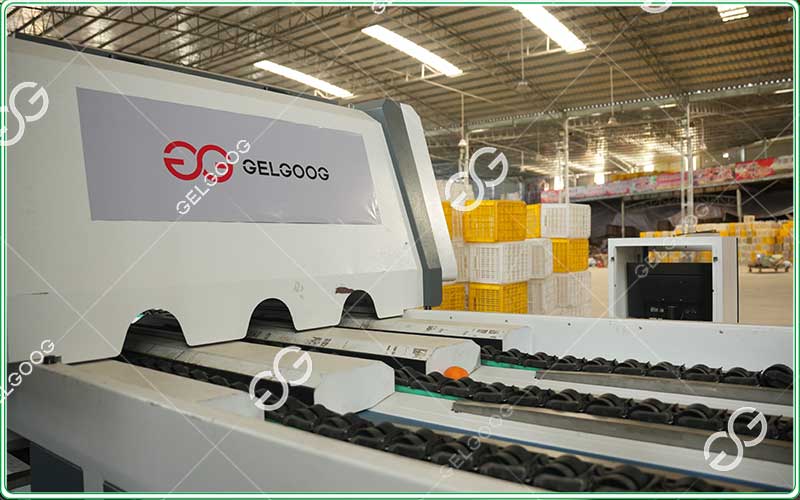

Step 3: Weight Grading

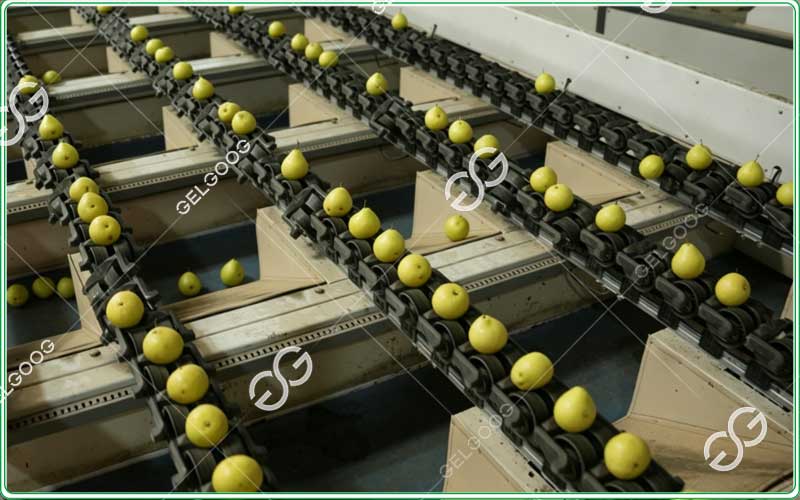

Each pear moves in its own cup. The cup passes over a weight sensor. The sensor measures the pear. Accuracy is ±2 to 5 grams. The PLC records the weight.
Then the machine activates a pusher or tipping cup. The pear falls into the correct chute. You set the weight ranges. Example: 150-180g, 180-210g, above 240g.
Weight Grading vs Size Grading
Size grading uses diameter. It does not measure weight. Two pears with the same size can have 30g difference. Weight grading catches this.
For pears, weight grading is better because:
- No need to adjust for each variety
- Detects low-density fruit
- Simple to operate
- Less maintenance
Key Specifications
| Parameter | Value / Range |
|---|---|
| Capacity | 1 – 10 tons per hour (customizable) |
| Weight range | 20g – 1000g |
| Accuracy | ±2g (static) / ±5g (dynamic) |
| Output lanes | 5 – 8 weight grades |
| Material | SUS304 stainless steel + food-grade cups |
| Power | 380V / 50Hz |
How to Choose Pear Washing and Grading Machine
Choose based on your daily volume.
🍐 Small orchard (under 2 tons/hour)
Use a standalone weight grader. Feed manually or with a simple conveyor.
🍐 Medium packhouse (2 to 10 tons/hour)

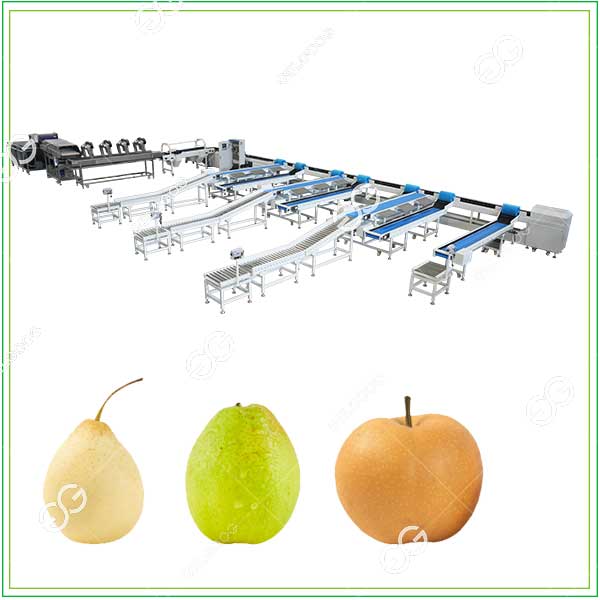

Use an inline washing and grading line. Pears go from washer to sorter automatically.
🍐 Large packer (over 10 tons/hour)
Use a multi-lane weight sorter. 4 to 8 lanes. Each lane has its own sensor.
📦 A pear washing and grading machine with weight grading gives you:
consistent pack weights · reduces waste · lowers labor cost.
We have configurations for 500 kg/day to 20 tons/day.
Contact us for a quote.
Tell us your target throughput, pear varieties, and desired weight grades. We will send a layout and price within 48 hours.
